Universal Black Aluminum Old Skool Low Profile Switch Block Assembly

Universal Black Old Skool Switch Block Assembly

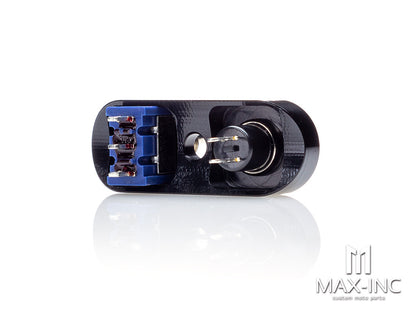

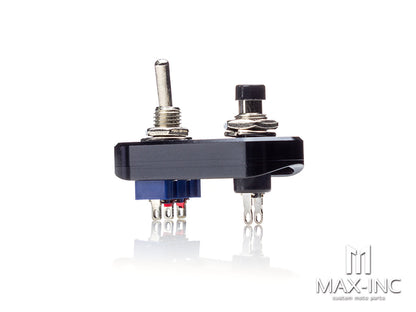

Low profile switch assembly machined from billet aluminum. Great for that uncluttered look. Eliminate the need for your stock switch blocks. These mini switches have a contoured base designed to sit flush on 7/8" or 1" handlebars.

Installation requires the drilling of 2 holes - a 15mm diameter hole for the toggle switch, and a 9mm hole for the push button switch.
Note: a 3.3mm hole needs to be drilled and tapped with an M4 tap to create threads for the supplied M4 screw which fastens the switch to the bar. All the associated wiring can be routed through the handlebar to an exit point of your choice.

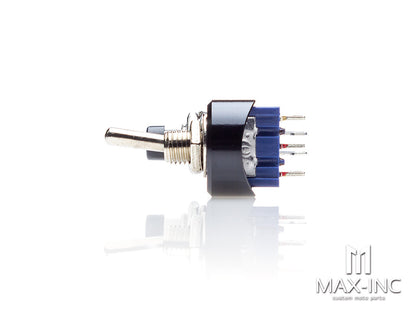

The button is a "push-on" momentary type (active only whilst pressing). The toggle is an "on/off" type. The toggle can be rotated in the base so as to provide a left-right or up-down operation.

The push-button switch can handle around 4 amps. The toggle switch can handle around 6 amps. If you want to run higher loads than this, you will need to run them via a relay.

Ideal for Cafe Racers, Project Bikes, Scramblers, Harely Davidsons, etc.

Specifications:

• 12 volt
• CNC machine billet aluminum housing
• Function 1: Momentary push button switch
• Function 2: On/Off toggle switch
• Universal - Fits both 7/8" and 1" handlebars
• Dimensions - please see photos

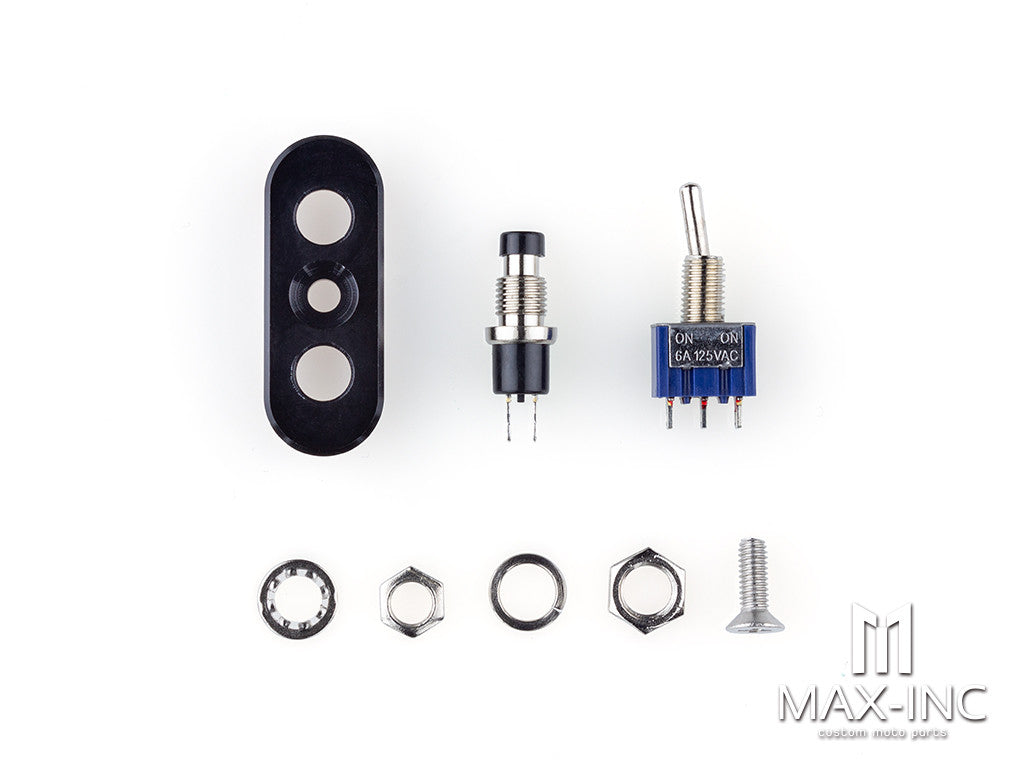

• Package includes: 1 x switch block assembly
